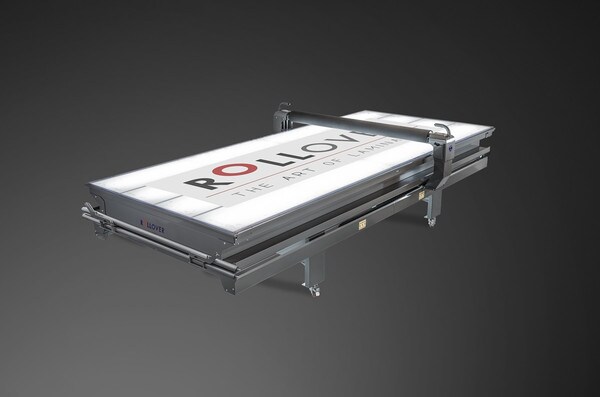

Rollover Classic 400cm x 170cm - 13,1' x 5,5' - Model 4017B

Rollover Classic sizes are based on 3,36m and 4,0m units of 1,70m width. By combining these, the standard assortment effectively also includes 6,72m and 8m models.

Key Features

• 400cm x 170cm – 13,1’ x 5,5’
• Model 4017B
• Inward facing and protected activation switch – simplifies and safeguards the applications
• Ergonomic handles enable one-hand roller operation for better efficiency and ergonomy
• Rounded housings – no sharp edges
• Free view to roller – no blocking tower or gantry
• Unobstructed access to the roller, media and the work surface
• Sidetrays for large formats on both sides
• Brackets/spindles for handling of media rolls and application tape from both table ends and roller housings
• Integrated air pressure gauge
• Self-healing cutting mat
• Illuminated glass bed(LED)
• Castors
• Tool pockets on each housing
• Separate outlet for air gun connection
• Handy holders for media spindles/brackets are mounted at the short end of the table
• Longside Cutter Guide – makes straight cutting of Media and Substrates much easier.

Key Data

• Steel edge outside glass bed – Add 0’1” ft-in on each side
• Max thickness of sign substrate – 0’4” ft-in
• Gap between steel edge and console – 0’2” ft-in
• Work Height Glass Bed – 3’0” ft-in
• Power Supply – 230v/50Hz – 120V/60Hz
• Model Size – 5’6” x 13’2” ft-in
• Glass Bed Working Area – 5’6” x 13’2” ft-in
• Working Area of Roller – 5’6” x 12’2”
• Roller Diameter – 0’5” ft-in
• Approximate Weight – 650
• Illumination, LED – 210W
